Sea-Surface-Calibration scans and evaluation

This notebook contains the evaluation of the Sea-Surface-Calibration scans and their evaluation with the different water-range determination methods.

from lidalign.io import WindCubeScanDB
from lidalign.utils import load_template, publication_figure
load_template()
import xarray as xr

import plotly.graph_objects as go
from PIL import Image
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from scipy.optimize import curve_fit
from lidalign.SSC import SSC

Using lidar_monitoring.mplstyle as matplotlib style template
Using lidar_monitoring.mplstyle as matplotlib style template

     __              __             __
    / _\ ___  __ _  / _\_   _ _ __ / _| __ _  ___ ___
    \ \ / _ \/ _` | \ \| | | | '__| |_ / _` |/ __/ _ \
    _\ \  __/ (_| | _\ \ |_| | |  |  _| (_| | (_|  __/
    \__/\___|\__,_| \__/\__,_|_|  |_|  \__,_|\___\___|
       ___      _ _ _               _   _
      / __\__ _| (_) |__  _ __ __ _| |_(_) ___  _ __
     / /  / _` | | | '_ \| '__/ _` | __| |/ _ \| '_ \
    / /__| (_| | | | |_) | | | (_| | |_| | (_) | | | |
    \____/\__,_|_|_|_.__/|_|  \__,_|\__|_|\___/|_| |_|

    Scripts for the leveling (SSL) of wind lidars and calibration (SSC) of inherent scanner offsets.
    Authors: Paul Meyer, Andreas Rott et al. (ForWind)
    Version: V1.0
    Date: 2026-01-06


import pathlib
savepath = pathlib.Path.home()  /'Figures'
savepath.mkdir(exist_ok=True)

datapath = ''
if datapath == '':
    raise ValueError('You must download the data and put here the path to the directory (end with top level)')

time_difference_lidar_actual = pd.to_datetime('2025-05-03 10:37') - pd.to_timedelta('2h') - pd.to_datetime('2010-01-02 15:51:32') ## PC time - Lidar time - correction for UTC
time_difference_lidar_actual

Timedelta('5599 days 16:45:28')

load data and correct azimuht (only!)

Load and correct data

# SSLgroup ='HelgoHarbour_ppi1' # does not work, not enough data
# SSLgroup = 'HardTarget_25mSSL_ppi'  # few datapoints for 25m
L_rg = 50

DB = WindCubeScanDB(datapath +fr"C_SSC\{L_rg}m\\", file_structure='flat')
SSLdata = DB.get_data(returnformat = 'xarray')
for ds in SSLdata:
    ds['time'] = pd.to_datetime(ds['time']) + time_difference_lidar_actual
    if L_rg==25:
        ds = ds.sel(time = slice(pd.to_datetime('2025-05-03 10:15:00'),None))
        # print('Yes')
        # print(len(ds['time']))
        # print(len(ds['time']))
        # print(ds['time'].values[0])

Finding all files for wind_and_aerosols_data
	 --> 4 files found
	 Filtering for 2010-01-02 17:36:30+00:00 to 2026-01-12 19:04:33.170864, None
	 --> 4 files found for given regex and time range

import numpy as np
def angle_offset_function(azimuth, phase, amplitude, offset):
    return np.cos(np.deg2rad(phase + azimuth))* amplitude + offset


# --------------- from hard target mapping, see other notebook --------------- #
azimuth_phase = 322
azimuth_ampl = 0.05
azimuth_offset = 41.86 + 0.38 # 0.38° repositioning offset, theodilite has been moved and not perfectly aligned with first positions

for ds in SSLdata:
    ds['azimuth'] = (ds['azimuth'] - angle_offset_function(ds['azimuth'],azimuth_phase, azimuth_ampl, azimuth_offset)) %360

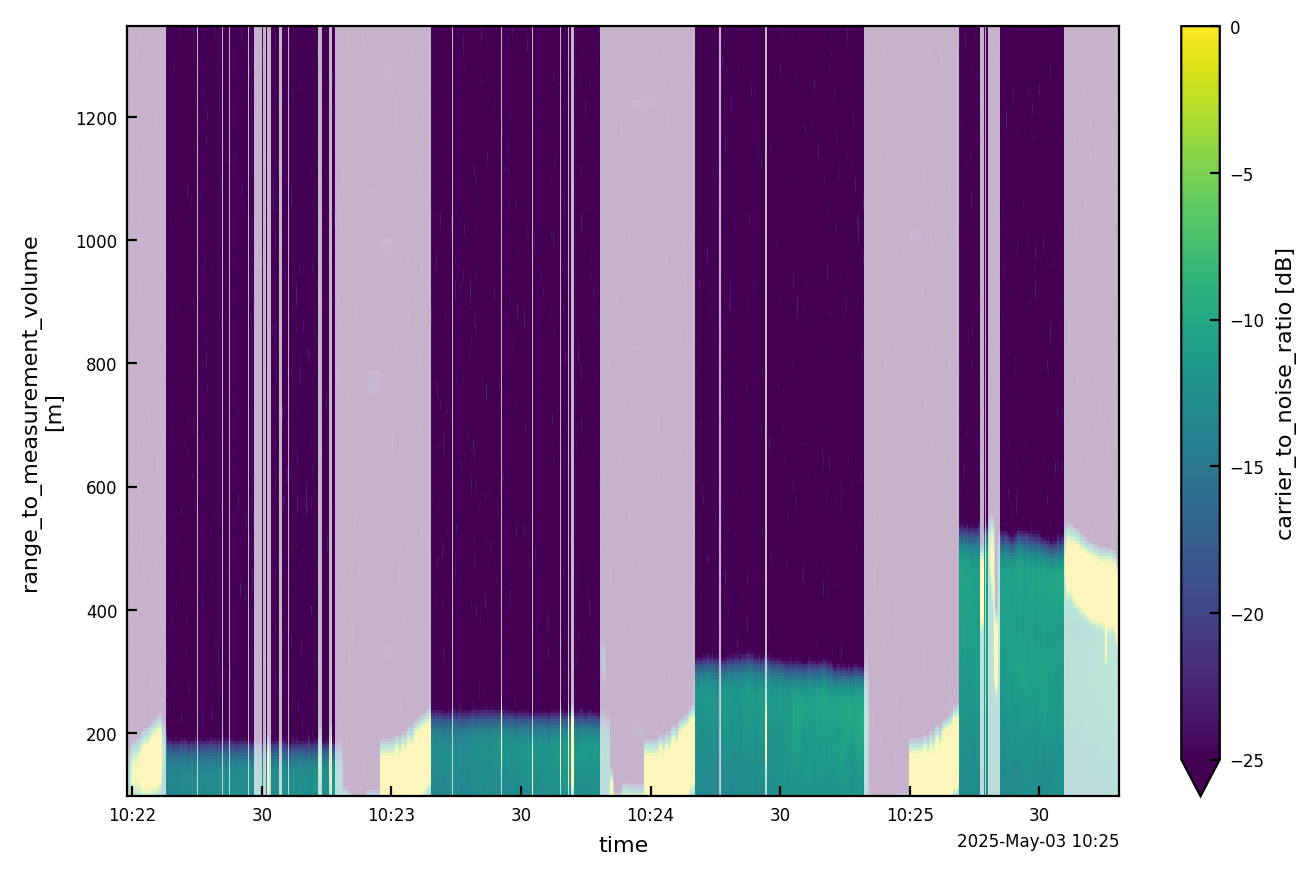

Plot and filter CNR

Some filters are required to obtain purely valid measurement data.

Unfortunately, due to the installation at a (busy) quay, we had to filter out ships, pedestrians and other things that blocked our measurements. In an offshore application, significantly less disturbance will be seen.

%matplotlib inline

combdata = xr.concat(SSLdata, dim = 'time')
fig, ax = plt.subplots(dpi = 200)
combdata['cnr'].plot(y = 'range', ax = ax, vmin = -25, vmax = 0, alpha = 0.3, add_colorbar  = False)
combdata = combdata.where((combdata['cnr'].max(dim = 'range')<-8) & # remove too high CNR
                          (combdata['cnr'].max(dim = 'range')>-20) &  # remove too low CNR
                          (combdata['cnr'].idxmax(dim = 'range')!= combdata.range[0]) & # remove if first data had max CNR
                          (combdata['azimuth']>(140-azimuth_offset)) & #  removing reflections from the dock
                          (combdata['azimuth']<(240-azimuth_offset))  & #  removing reflections from the dock
                          (~((combdata['time'] > pd.to_datetime('2025-05-03 09:55:00')) & (combdata['time'] < pd.to_datetime('2025-05-03 10:15:00'))))
                       )#  removing beginning and end of datas with bad CNR

rollmean = combdata['cnr'].max(dim = 'range').rolling(time=10, center=True).mean().interpolate_na(dim = 'time').bfill(dim = 'time').ffill(dim= 'time')

rolling_condition = np.abs(combdata['cnr'].max(dim = 'range') - rollmean) > 1 ## remove outliers
combdata = combdata.where(~rolling_condition)

combdata['cnr'].plot(y = 'range', ax = ax, vmin = -25, vmax = 0, alpha =1)

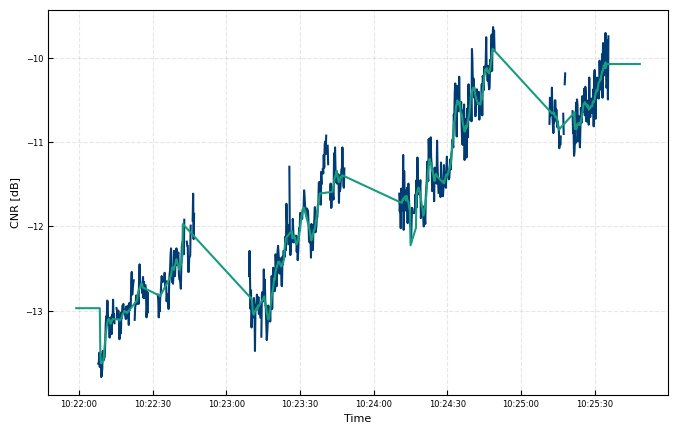

fig, ax= plt.subplots()
ax.plot(combdata.time, combdata['cnr'].max(dim= 'range'))
ax.plot(rollmean.time, rollmean)
ax.set(ylabel = 'CNR [dB]', xlabel = 'Time')

combdata_nona = combdata.dropna(dim = 'time', how = 'all')

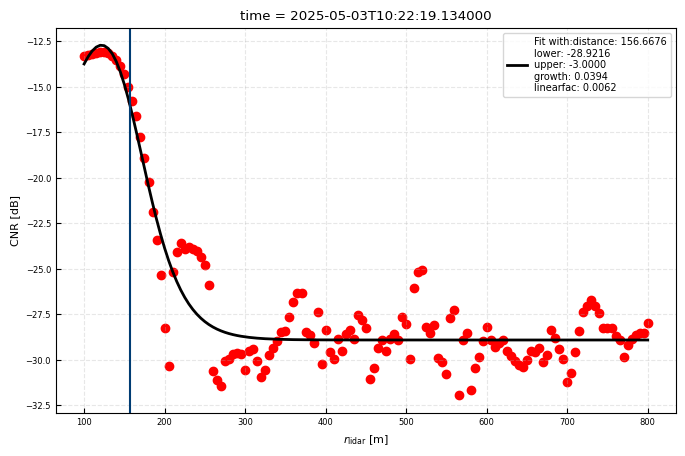

Get lidar-water distances for all methods

## works better with CNR noise at -27 for Gra24 because it is fitted in dB scale - need to remove the unneccessary noise first
from lidalign.SSC import GaussianTruncatedPulse
waterranges_convo = SSC(combdata_nona.copy()).get_all_water_ranges(func = 'Convo',# cnr_noise_cut = -28,
pulse = GaussianTruncatedPulse(50)).distance_ds

waterranges_linsig = SSC(combdata_nona.copy()).get_all_water_ranges(func = 'LinSig', cnr_noise_cut = -28,
pulse = GaussianTruncatedPulse(50)).distance_ds

waterranges_linconvo = SSC(combdata_nona.copy()).get_all_water_ranges(func = 'LinConvo',
pulse = GaussianTruncatedPulse(50)).distance_ds

waterranges_gra = SSC(combdata_nona.copy()).get_all_water_ranges(func = 'Gra24', cnr_noise_cut = None).distance_ds

with convolution water ranges:

waterranges_gra_raw = waterranges_gra.copy()

mean = waterranges_gra_raw['water_range'].rolling(time = 10, center = True).mean()
std = waterranges_gra_raw['water_range'].rolling(time = 10, center = True).std()
waterranges_gra = waterranges_gra_raw.where(((mean + 2* std) > waterranges_gra_raw['water_range']) & (mean - 2* std < waterranges_gra_raw['water_range'] ), drop = True)
waterranges_gra25 = waterranges_gra.copy()
waterranges_gra25['water_range'] = waterranges_gra25['water_range'] - 25

Save to files (to use later)

waterranges_convo.to_netcdf('data/fitresults/waterranges_ConvoDB.nc')
waterranges_linsig.to_netcdf('data/fitresults/waterranges_LinSig.nc')
waterranges_linconvo.to_netcdf('data/fitresults/waterranges_Convo.nc')
waterranges_gra.to_netcdf('data/fitresults/waterranges_Gra24.nc')
waterranges_gra25.to_netcdf('data/fitresults/waterranges_Gra24-PV2.nc')

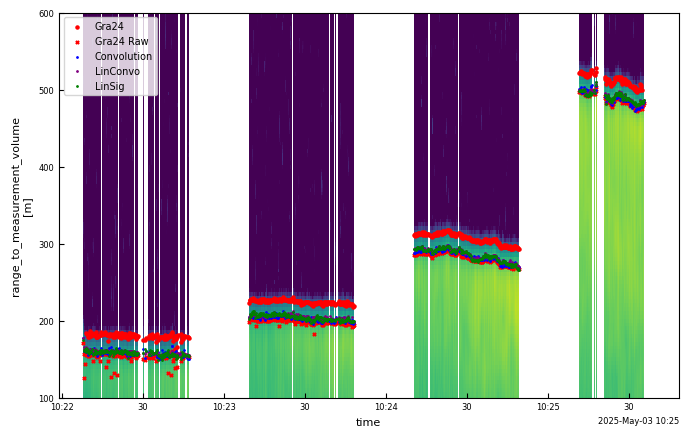

%matplotlib inline
fig, ax = plt.subplots()
combdata['cnr'].plot(y = 'range', ax = ax, vmin = -25, vmax = -8, alpha =1, add_colorbar  = False)
ax.scatter(waterranges_gra['time'], waterranges_gra['water_range'], label = 'Gra24', c = 'r', s =5)
ax.scatter(waterranges_gra_raw['time'], waterranges_gra_raw['water_range']-25, label = 'Gra24 Raw', c = 'r', s =5, marker = 'x')
ax.scatter(waterranges_convo['time'], waterranges_convo['water_range'], label = 'Convolution', c = 'blue', s =1)
ax.scatter(waterranges_linconvo['time'], waterranges_linconvo['water_range'], label = 'LinConvo', c = 'purple', s =1)
ax.scatter(waterranges_linsig['time'], waterranges_linsig['water_range'], label = 'LinSig', c = 'green', s =1)
ax.set(ylim = (100,600))
ax.legend(loc = 'upper left')

<matplotlib.legend.Legend at 0x1eaf76b86b0>

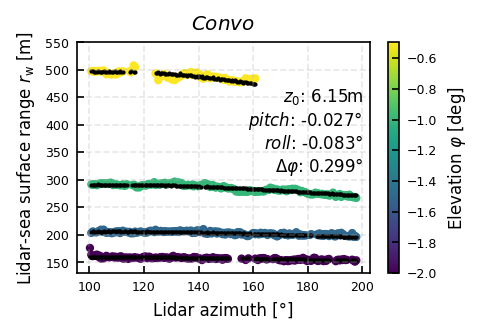

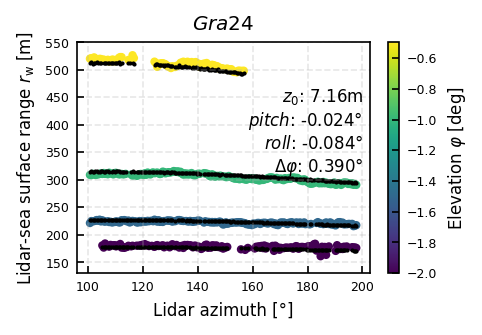

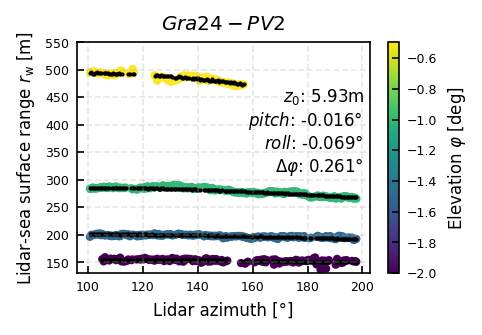

Get the actual SSL misalignment and calibration values

Attention: We have to subtract the 1.66m offset in the range for all range measurements (see other notebook or following link)

Lidar Range error from distance measurements

we can either:

• use the data stored before (safe and reproducable)

• use the now aquired data

water_range_source = 'data/fitresults/' # latest version
water_range_source = 'data/fitresults/PaperResults/' # Results for Paper

%matplotlib inline

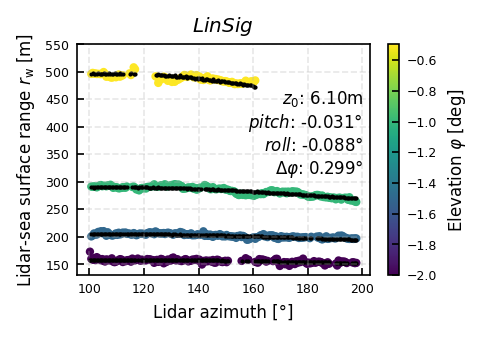

for name in ['ConvoDB','Convo' ,'LinSig', 'Gra24', 'Gra24-PV2']:
    ranges = xr.load_dataset(water_range_source + f'waterranges_{name}.nc')
    fig, ax = publication_figure(1/2, dpi = 150, height = 2)
    ax.set(ylim = (130,550))
    ranges_copy = ranges.copy()
    ranges_copy['water_range'] = ranges_copy['water_range'] -1.66
    res = SSC.get_misalignment(
                ranges_copy, consider_elevation_offset=True, plot=True, print_help=False,ax = ax,
                x0 = [0.1,0.1,6.17],
                consider_earth_curvature=True,
                reduce_errors = 'ranges',
                fit_method = 'lorentz',
                error_normalized = True,
                fixed_height = None,
            )
    roll, pitch, height, ele_offset = res.x
    text = (
            f'\n$z_0$: {height:.2f}m'+
            f'\n$pitch$: {pitch:.3f}° '+
            f'\n$roll$: {roll:.3f}°\n'+
            r'$\Delta\varphi$'+f': {ele_offset:.3f}°'
            )
    ax.text(0.98, 0.9, text, ha = 'right', va= 'top', transform=ax.transAxes)

    ax.set(title = f'${name}$')
    ax.set(xlabel = 'Lidar azimuth [°]', ylabel = r'Lidar-sea surface range $r_{\rm w}$ [m]')
    plt.legend().remove()

    plt.savefig(savepath + f'SSC_Misalignment_{name}_{L_rg}.pdf', dpi = 300, bbox_inches = 'tight', pad_inches = 0)

Appendix

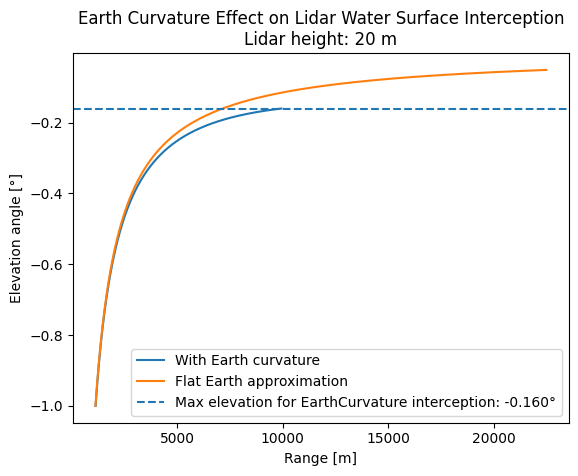

Earth curvature considerations

Depending on the installation height of the lidar, we cannot detect the water at each elevation angle.

from lidalign.SSL import EarthCurvature
import numpy as np
import matplotlib.pyplot as plt
h = 20
elevations = np.arange(-1,-0.050,0.001)
radii = []
flats = []
for v in elevations:
    radii.append(EarthCurvature.get_intercept_with_curvature(h, v))
    flats.append(h/np.arcsin(np.deg2rad(-v)))

fig, ax = plt.subplots()
ax.plot(radii,elevations,  label = 'With Earth curvature')
ax.plot(flats, elevations, label = 'Flat Earth approximation')
ax.set(xlabel = 'Range [m]', ylabel = 'Elevation angle [°]')
max_ele = elevations[np.nanargmax(radii)]
ax.axhline(max_ele, ls = '--', label = f'Max elevation for EarthCurvature interception: {max_ele:.3f}°')
ax.legend()
ax.set(title = "Earth Curvature Effect on Lidar Water Surface Interception\n" + f"Lidar height: {h} m")

# fig, ax = plt.subplots()
# ax.plot(np.array(radii)-np.array(flats), verts)
# ax.set(xscale= 'log')
# EarthCurvature.get_intercept_with_curvature(50, verts)
